Zabbix - 오픈 소스 모니터링 (Tomcat)

현재 진행 중인 프로젝트의 WAS가 Tomcat로 구성되어 있는데 한번씩 느려 지는 현상이 있어서 Tocat 모니터링을 할 수 있는 오픈소스 Zabbix를 설치해서 모니터링 해보려고 한다.

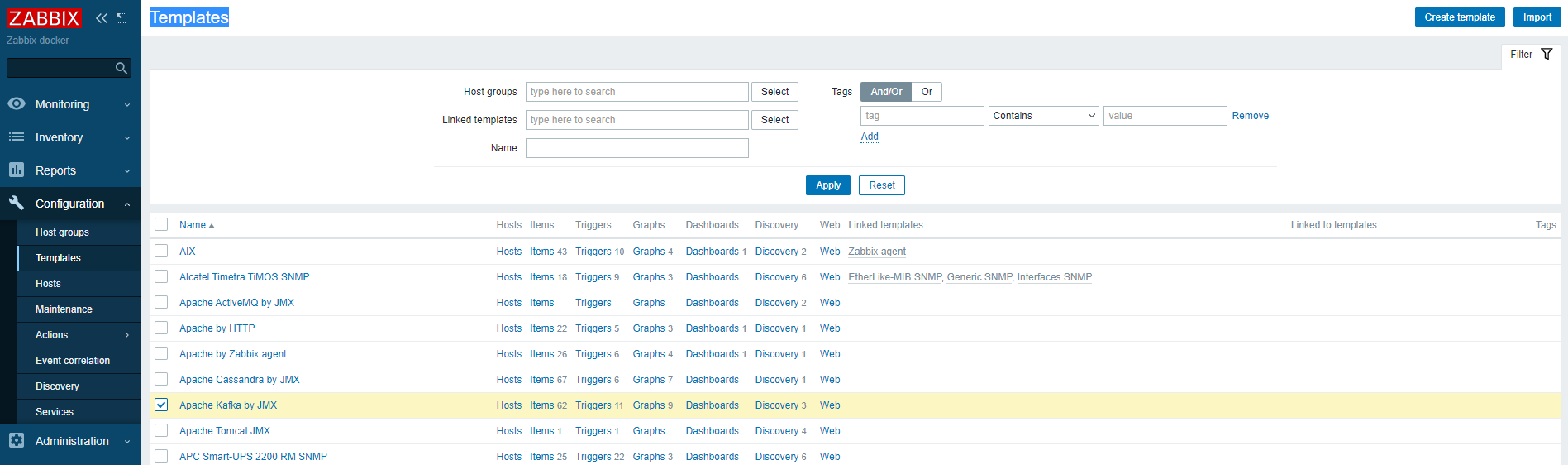

Zabbix는 톰캣 외에 다양한 플래폼을 지원하니 홈페이지에서 확인해보기 바랍니다.

https://www.zabbix.com/

Zabbix :: The Enterprise-Class Open Source Network Monitoring Solution

Zabbix is a mature and effortless enterprise-class open source monitoring solution for network monitoring and application monitoring of millions of metrics.

www.zabbix.com

[Zabbix agent 설치]

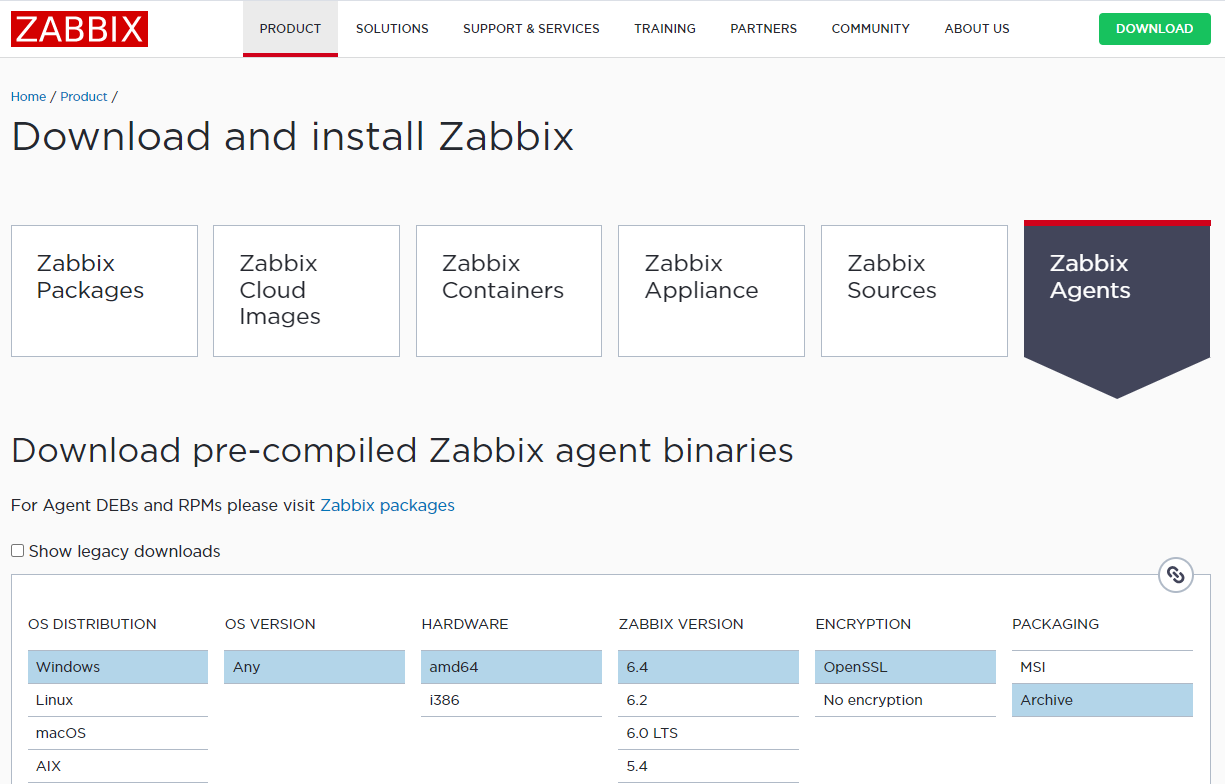

서버에 맞는 agent 다운로드

윈도우 서버여서 윈도우 버전으로 저는 진행 했습니다.

[zabbix_agentd.conf]

# This is a configuration file for Zabbix agent service (Windows)
# To get more information about Zabbix, visit http://www.zabbix.com

############ GENERAL PARAMETERS #################

### Option: LogType
#	Specifies where log messages are written to:
#		system  - Windows event log
#		file    - file specified with LogFile parameter
#		console - standard output
#
# Mandatory: no
# Default:
# LogType=file

### Option: LogFile
#	Log file name for LogType 'file' parameter.
#
# Mandatory: no
# Default:
# LogFile=

LogFile=c:\temp\zabbix_agentd.log

### Option: LogFileSize
#	Maximum size of log file in MB.
#	0 - disable automatic log rotation.
#
# Mandatory: no
# Range: 0-1024
# Default:
# LogFileSize=1

### Option: DebugLevel
#	Specifies debug level:
#	0 - basic information about starting and stopping of Zabbix processes
#	1 - critical information
#	2 - error information
#	3 - warnings
#	4 - for debugging (produces lots of information)
#	5 - extended debugging (produces even more information)
#
# Mandatory: no
# Range: 0-5
# Default:
# DebugLevel=3

### Option: SourceIP
#	Source IP address for outgoing connections.
#
# Mandatory: no
# Default:
# SourceIP=

### Option: AllowKey
#	Allow execution of item keys matching pattern.
#	Multiple keys matching rules may be defined in combination with DenyKey.
#	Key pattern is wildcard expression, which support "*" character to match any number of any characters in certain position. It might be used in both key name and key arguments.
#	Parameters are processed one by one according their appearance order.
#	If no AllowKey or DenyKey rules defined, all keys are allowed.
#
# Mandatory: no

### Option: DenyKey
#	Deny execution of items keys matching pattern.
#	Multiple keys matching rules may be defined in combination with AllowKey.
#	Key pattern is wildcard expression, which support "*" character to match any number of any characters in certain position. It might be used in both key name and key arguments.
#	Parameters are processed one by one according their appearance order.
#	If no AllowKey or DenyKey rules defined, all keys are allowed.
#       Unless another system.run[*] rule is specified DenyKey=system.run[*] is added by default.
#
# Mandatory: no
# Default:
# DenyKey=system.run[*]

### Option: EnableRemoteCommands - Deprecated, use AllowKey=system.run[*] or DenyKey=system.run[*] instead
#	Internal alias for AllowKey/DenyKey parameters depending on value:
#	0 - DenyKey=system.run[*]
#	1 - AllowKey=system.run[*]
#
# Mandatory: no

### Option: LogRemoteCommands
#	Enable logging of executed shell commands as warnings.
#	0 - disabled
#	1 - enabled
#
# Mandatory: no
# Default:
# LogRemoteCommands=0

##### Passive checks related

### Option: Server
#	List of comma delimited IP addresses, optionally in CIDR notation, or DNS names of Zabbix servers and Zabbix proxies.
#	Incoming connections will be accepted only from the hosts listed here.
#	If IPv6 support is enabled then '127.0.0.1', '::127.0.0.1', '::ffff:127.0.0.1' are treated equally and '::/0' will allow any IPv4 or IPv6 address.
#	'0.0.0.0/0' can be used to allow any IPv4 address.
#	Example: Server=127.0.0.1,192.168.1.0/24,::1,2001:db8::/32,zabbix.domain
#
# Mandatory: yes, if StartAgents is not explicitly set to 0
# Default:
# Server=

Server=127.0.0.1

### Option: ListenPort
#	Agent will listen on this port for connections from the server.
#
# Mandatory: no
# Range: 1024-32767
# Default:
# ListenPort=10050

ListenPort=10050

### Option: ListenIP
#		List of comma delimited IP addresses that the agent should listen on.
#		First IP address is sent to Zabbix server if connecting to it to retrieve list of active checks.
#
# Mandatory: no
# Default:
# ListenIP=0.0.0.0

### Option: StartAgents
#	Number of pre-forked instances of zabbix_agentd that process passive checks.
#	If set to 0, disables passive checks and the agent will not listen on any TCP port.
#
# Mandatory: no
# Range: 0-100
# Default:
# StartAgents=3

##### Active checks related

### Option: ServerActive
#	Zabbix server/proxy address or cluster configuration to get active checks from.
#	Server/proxy address is IP address or DNS name and optional port separated by colon.
#	Cluster configuration is one or more server addresses separated by semicolon.
#	Multiple Zabbix servers/clusters and Zabbix proxies can be specified, separated by comma.
#	More than one Zabbix proxy should not be specified from each Zabbix server/cluster.
#	If Zabbix proxy is specified then Zabbix server/cluster for that proxy should not be specified.
#	Multiple comma-delimited addresses can be provided to use several independent Zabbix servers in parallel. Spaces are allowed.
#	If port is not specified, default port is used.
#	IPv6 addresses must be enclosed in square brackets if port for that host is specified.
#	If port is not specified, square brackets for IPv6 addresses are optional.
#	If this parameter is not specified, active checks are disabled.
#	Example for Zabbix proxy:
#		ServerActive=127.0.0.1:10051
#	Example for multiple servers:
#		ServerActive=127.0.0.1:20051,zabbix.domain,[::1]:30051,::1,[12fc::1]
#	Example for high availability:
#		ServerActive=zabbix.cluster.node1;zabbix.cluster.node2:20051;zabbix.cluster.node3
#	Example for high availability with two clusters and one server:
#		ServerActive=zabbix.cluster.node1;zabbix.cluster.node2:20051,zabbix.cluster2.node1;zabbix.cluster2.node2,zabbix.domain
#
# Mandatory: no
# Default:
# ServerActive=

ServerActive=127.0.0.1:8282

### Option: Hostname
#	List of comma delimited unique, case sensitive hostnames.
#	Required for active checks and must match hostnames as configured on the server.
#	Value is acquired from HostnameItem if undefined.
#
# Mandatory: no
# Default:
# Hostname=

Hostname=Windows host

### Option: HostnameItem
#	Item used for generating Hostname if it is undefined. Ignored if Hostname is defined.
#	Does not support UserParameters or aliases.
#
# Mandatory: no
# Default:
# HostnameItem=system.hostname

### Option: HostMetadata
#	Optional parameter that defines host metadata.
#	Host metadata is used at host auto-registration process.
#	An agent will issue an error and not start if the value is over limit of 2034 bytes.
#	If not defined, value will be acquired from HostMetadataItem.
#
# Mandatory: no
# Range: 0-2034 bytes
# Default:
# HostMetadata=

### Option: HostMetadataItem
#	Optional parameter that defines an item used for getting host metadata.
#	Host metadata is used at host auto-registration process.
#	During an auto-registration request an agent will log a warning message if
#	the value returned by specified item is over limit of 65535 characters.
#	This option is only used when HostMetadata is not defined.
#
# Mandatory: no
# Default:
# HostMetadataItem=

### Option: HostInterface
#	Optional parameter that defines host interface.
#	Host interface is used at host auto-registration process.
#	An agent will issue an error and not start if the value is over limit of 255 characters.
#	If not defined, value will be acquired from HostInterfaceItem.
#
# Mandatory: no
# Range: 0-255 characters
# Default:
# HostInterface=

### Option: HostInterfaceItem
#	Optional parameter that defines an item used for getting host interface.
#	Host interface is used at host auto-registration process.
#	During an auto-registration request an agent will log a warning message if
#	the value returned by specified item is over limit of 255 characters.
#	This option is only used when HostInterface is not defined.
#
# Mandatory: no
# Default:
# HostInterfaceItem=

### Option: RefreshActiveChecks
#	How often list of active checks is refreshed, in seconds.
#
# Mandatory: no
# Range: 1-86400
# Default:
# RefreshActiveChecks=5

### Option: BufferSend
#	Do not keep data longer than N seconds in buffer.
#
# Mandatory: no
# Range: 1-3600
# Default:
# BufferSend=5

### Option: BufferSize
#	Maximum number of values in a memory buffer. The agent will send
#	all collected data to Zabbix server or Proxy if the buffer is full.
#
# Mandatory: no
# Range: 2-65535
# Default:
# BufferSize=100

### Option: MaxLinesPerSecond
#	Maximum number of new lines the agent will send per second to Zabbix Server
#	or Proxy processing 'log', 'logrt' and 'eventlog' active checks.
#	The provided value will be overridden by the parameter 'maxlines',
#	provided in 'log', 'logrt' or 'eventlog' item keys.
#
# Mandatory: no
# Range: 1-1000
# Default:
# MaxLinesPerSecond=20

### Option: HeartbeatFrequency
#	Frequency of heartbeat messages in seconds.
#	Used for monitoring availability of active checks.
#	0 - heartbeat messages disabled.
#
# Mandatory: no
# Range: 0-3600
# Default: 60
# HeartbeatFrequency=

############ ADVANCED PARAMETERS #################

### Option: Alias
#	Sets an alias for an item key. It can be used to substitute long and complex item key with a smaller and simpler one.
#	Multiple Alias parameters may be present. Multiple parameters with the same Alias key are not allowed.
#	Different Alias keys may reference the same item key.
#	For example, to retrieve paging file usage in percents from the server:
#	Alias=pg_usage:perf_counter[\Paging File(_Total)\% Usage]
#	Now shorthand key pg_usage may be used to retrieve data.
#	Aliases can be used in HostMetadataItem but not in HostnameItem or PerfCounter parameters.
#
# Mandatory: no
# Range:
# Default:

### Option: Timeout
#	Spend no more than Timeout seconds on processing.
#
# Mandatory: no
# Range: 1-30
# Default:
# Timeout=3

### Option: PerfCounter
#	Syntax: <parameter_name>,"<perf_counter_path>",<period>
#	Defines new parameter <parameter_name> which is an average value for system performance counter <perf_counter_path> for the specified time period <period> (in seconds).
#	For example, if you wish to receive average number of processor interrupts per second for last minute, you can define new parameter "interrupts" as following:
#	PerfCounter = interrupts,"\Processor(0)\Interrupts/sec",60
#	Please note double quotes around performance counter path.
#	Samples for calculating average value will be taken every second.
#	You may run "typeperf -qx" to get list of all performance counters available in Windows.
#
# Mandatory: no
# Range:
# Default:

### Option: Include
#	You may include individual files in the configuration file.
#
# Mandatory: no
# Default:
# Include=

# Include=c:\zabbix\zabbix_agentd.userparams.conf
# Include=c:\zabbix\zabbix_agentd.conf.d\
# Include=c:\zabbix\zabbix_agentd.conf.d\*.conf

####### USER-DEFINED MONITORED PARAMETERS #######

### Option: UnsafeUserParameters
#	Allow all characters to be passed in arguments to user-defined parameters.
#	The following characters are not allowed:
#	\ ' " ` * ? [ ] { } ~ $ ! & ; ( ) < > | # @
#	Additionally, newline characters are not allowed.
#	0 - do not allow
#	1 - allow
#
# Mandatory: no
# Range: 0-1
# Default:
# UnsafeUserParameters=0

### Option: UserParameter
#	User-defined parameter to monitor. There can be several user-defined parameters.
#	Format: UserParameter=<key>,<shell command>
#
# Mandatory: no
# Default:
# UserParameter=

### Option: UserParameterDir
#	Directory to execute UserParameter commands from. Only one entry is allowed.
#	When executing UserParameter commands the agent will change the working directory to the one
#	specified in the UserParameterDir option.
#	This way UserParameter commands can be specified using the relative ./ prefix.
#
# Mandatory: no
# Default:
# UserParameterDir=

####### TLS-RELATED PARAMETERS #######

### Option: TLSConnect
#	How the agent should connect to server or proxy. Used for active checks.
#	Only one value can be specified:
#		unencrypted - connect without encryption
#		psk         - connect using TLS and a pre-shared key
#		cert        - connect using TLS and a certificate
#
# Mandatory: yes, if TLS certificate or PSK parameters are defined (even for 'unencrypted' connection)
# Default:
# TLSConnect=unencrypted

### Option: TLSAccept
#	What incoming connections to accept.
#	Multiple values can be specified, separated by comma:
#		unencrypted - accept connections without encryption
#		psk         - accept connections secured with TLS and a pre-shared key
#		cert        - accept connections secured with TLS and a certificate
#
# Mandatory: yes, if TLS certificate or PSK parameters are defined (even for 'unencrypted' connection)
# Default:
# TLSAccept=unencrypted

### Option: TLSCAFile
#	Full pathname of a file containing the top-level CA(s) certificates for
#	peer certificate verification.
#
# Mandatory: no
# Default:
# TLSCAFile=

### Option: TLSCRLFile
#	Full pathname of a file containing revoked certificates.
#
# Mandatory: no
# Default:
# TLSCRLFile=

### Option: TLSServerCertIssuer
#		Allowed server certificate issuer.
#
# Mandatory: no
# Default:
# TLSServerCertIssuer=

### Option: TLSServerCertSubject
#		Allowed server certificate subject.
#
# Mandatory: no
# Default:
# TLSServerCertSubject=

### Option: TLSCertFile
#	Full pathname of a file containing the agent certificate or certificate chain.
#
# Mandatory: no
# Default:
# TLSCertFile=

### Option: TLSKeyFile
#	Full pathname of a file containing the agent private key.
#
# Mandatory: no
# Default:
# TLSKeyFile=

### Option: TLSPSKIdentity
#	Unique, case sensitive string used to identify the pre-shared key.
#
# Mandatory: no
# Default:
# TLSPSKIdentity=

### Option: TLSPSKFile
#	Full pathname of a file containing the pre-shared key.
#
# Mandatory: no
# Default:
# TLSPSKFile=

####### For advanced users - TLS ciphersuite selection criteria #######

### Option: TLSCipherCert13
#	Cipher string for OpenSSL 1.1.1 or newer in TLS 1.3.
#	Override the default ciphersuite selection criteria for certificate-based encryption.
#
# Mandatory: no
# Default:
# TLSCipherCert13=

### Option: TLSCipherCert
#	GnuTLS priority string or OpenSSL (TLS 1.2) cipher string.
#	Override the default ciphersuite selection criteria for certificate-based encryption.
#	Example for GnuTLS:
#		NONE:+VERS-TLS1.2:+ECDHE-RSA:+RSA:+AES-128-GCM:+AES-128-CBC:+AEAD:+SHA256:+SHA1:+CURVE-ALL:+COMP-NULL:+SIGN-ALL:+CTYPE-X.509
#	Example for OpenSSL:
#		EECDH+aRSA+AES128:RSA+aRSA+AES128
#
# Mandatory: no
# Default:
# TLSCipherCert=

### Option: TLSCipherPSK13
#	Cipher string for OpenSSL 1.1.1 or newer in TLS 1.3.
#	Override the default ciphersuite selection criteria for PSK-based encryption.
#	Example:
#		TLS_CHACHA20_POLY1305_SHA256:TLS_AES_128_GCM_SHA256
#
# Mandatory: no
# Default:
# TLSCipherPSK13=

### Option: TLSCipherPSK
#	GnuTLS priority string or OpenSSL (TLS 1.2) cipher string.
#	Override the default ciphersuite selection criteria for PSK-based encryption.
#	Example for GnuTLS:
#		NONE:+VERS-TLS1.2:+ECDHE-PSK:+PSK:+AES-128-GCM:+AES-128-CBC:+AEAD:+SHA256:+SHA1:+CURVE-ALL:+COMP-NULL:+SIGN-ALL
#	Example for OpenSSL:
#		kECDHEPSK+AES128:kPSK+AES128
#
# Mandatory: no
# Default:
# TLSCipherPSK=

### Option: TLSCipherAll13
#	Cipher string for OpenSSL 1.1.1 or newer in TLS 1.3.
#	Override the default ciphersuite selection criteria for certificate- and PSK-based encryption.
#	Example:
#		TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256:TLS_AES_128_GCM_SHA256
#
# Mandatory: no
# Default:
# TLSCipherAll13=

### Option: TLSCipherAll
#	GnuTLS priority string or OpenSSL (TLS 1.2) cipher string.
#	Override the default ciphersuite selection criteria for certificate- and PSK-based encryption.
#	Example for GnuTLS:
#		NONE:+VERS-TLS1.2:+ECDHE-RSA:+RSA:+ECDHE-PSK:+PSK:+AES-128-GCM:+AES-128-CBC:+AEAD:+SHA256:+SHA1:+CURVE-ALL:+COMP-NULL:+SIGN-ALL:+CTYPE-X.509
#	Example for OpenSSL:
#		EECDH+aRSA+AES128:RSA+aRSA+AES128:kECDHEPSK+AES128:kPSK+AES128
#
# Mandatory: no
# Default:
# TLSCipherAll=

####### For advanced users - TCP-related fine-tuning parameters #######

## Option: ListenBacklog
#       The maximum number of pending connections in the queue. This parameter is passed to
#       listen() function as argument 'backlog' (see "man listen").
#
# Mandatory: no
# Range: 0 - INT_MAX (depends on system, too large values may be silently truncated to implementation-specified maximum)
# Default: SOMAXCONN (hard-coded constant, depends on system)
# ListenBacklog=

Server=192.168.0.100 zabbix 서버 아이피
LogFile=c:\temp\zabbix_agentd.log 로그파일 위치
ServerActive=192.168.0.100 zabbix 서버 아이피

[agent 실행]

C:\dev\zabbix\bin>zabbix_agentd.exe -c zabbix_agentd.conf -i
zabbix_agentd.exe [2148]: service [Zabbix Agent] installed successfully
zabbix_agentd.exe [2148]: event source [Zabbix Agent] installed successfully

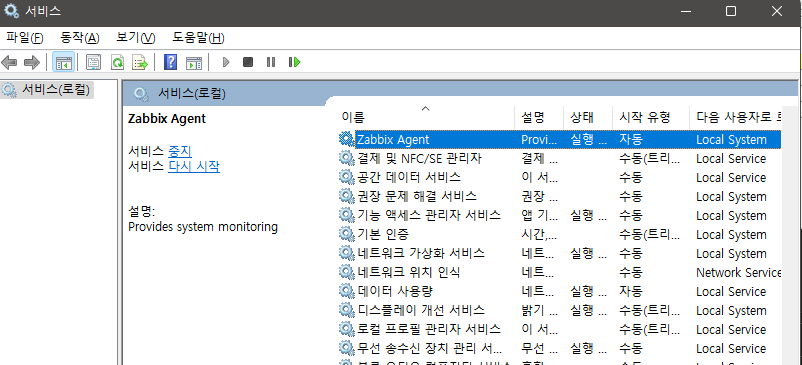

[서비스에서 시작]

수집서버 설치

[docker-compose.yml] 서버설치 설치는 docker-compose로 설치

version: '3.3'

services:
  postgres-server:
    container_name: postgres-server
    image: postgres:13.0-alpine
    restart: always
    environment:
      POSTGRES_USER: zabbix
      POSTGRES_PASSWORD: passwd!Q
      POSTGRES_DB: zabbix
      PG_DATA: /var/lib/postgresql/data/pgdata

  zabbix-server:
    container_name: zabbix-server
    image: zabbix/zabbix-server-pgsql:ubuntu-5.4.9
    restart: always
    environment:
      POSTGRES_USER: zabbix
      POSTGRES_PASSWORD: passwd!Q
      POSTGRES_DB: zabbix
      ZBX_HISTORYSTORAGETYPES: log,text
      ZBX_DEBUGLEVEL: 1
      ZBX_HOUSEKEEPINGFREQUENCY: 1
      ZBX_MAXHOUSEKEEPERDELETE: 5000
    depends_on:
      - postgres-server
    volumes:
      - ./volumes/zabbix/alertscripts:/usr/lib/zabbix/alertscripts

  zabbix-frontend:
    container_name: zabbix-frontend
    image: zabbix/zabbix-web-nginx-pgsql:ubuntu-5.4.9
    restart: always
    ports:
      - '8282:8080'
    environment:
      POSTGRES_USER: zabbix
      POSTGRES_PASSWORD: passwd!Q
      POSTGRES_DB: zabbix
      ZBX_SERVER_HOST: zabbix-server
      ZBX_POSTMAXSIZE: 64M
      PHP_TZ: "Asia/Seoul"
      ZBX_MAXEXECUTIONTIME: 500
    depends_on:
      - postgres-server
      - zabbix-server

  zabbix-agent:
    container_name: zabbix-agent
    image: zabbix/zabbix-agent:latest
    privileged: true
    restart: unless-stopped
    environment:
      - ZBX_SERVER_HOST=zabbix-server

  grafana:
    container_name: grafana
    image: grafana/grafana
    restart: always
    ports:
      - '3000:3000'
    environment:
      - GF_INSTALL_PLUGINS=alexanderzobnin-zabbix-app
    depends_on:
      - postgres-server
      - zabbix-server

[실행]

$ sudo docker-compose up -d
Creating network "zabbix_default" with the default driver
Pulling postgres-server (postgres:13.0-alpine)...
13.0-alpine: Pulling from library/postgres
188c0c94c7c5: Pull complete
56f1d1b70e7f: Pull complete
9b4f01476d2b: Pull complete
16419214bc02: Pull complete
4886fc567835: Pull complete
9026d4fbeafa: Pull complete
001c336294eb: Pull complete
8abc6d154e9f: Pull complete
Digest: sha256:d26ddee3648a324a9747b3257236322141920d5f9a82ca703def6bff1cca7067
Status: Downloaded newer image for postgres:13.0-alpine
Pulling zabbix-server (zabbix/zabbix-server-pgsql:ubuntu-5.4.9)...
ubuntu-5.4.9: Pulling from zabbix/zabbix-server-pgsql
7b1a6ab2e44d: Pull complete
0faa8a1ae817: Pull complete
3642f2e6bfc4: Pull complete
086bad9e9cd9: Pull complete
c1c20828c503: Pull complete
462c6b039bd7: Pull complete
cdd75e9be98e: Pull complete
f5e7e1ca81ac: Pull complete
212bb4660306: Pull complete
Digest: sha256:067ee3c27825615b157b43a42dfa4f893539fa65eeec27e50afb715923892856
Status: Downloaded newer image for zabbix/zabbix-server-pgsql:ubuntu-5.4.9
Pulling zabbix-frontend (zabbix/zabbix-web-nginx-pgsql:ubuntu-5.4.9)...
ubuntu-5.4.9: Pulling from zabbix/zabbix-web-nginx-pgsql
7b1a6ab2e44d: Already exists
9bcbd8c6e347: Pull complete
19fa03b3be40: Pull complete
e5f70d4240af: Pull complete
e9ebbfd24f86: Pull complete
Digest: sha256:8f19f28073c35ad2cac238c4b016e06bdf820ed878e1b85ea3368e56a8376297
Status: Downloaded newer image for zabbix/zabbix-web-nginx-pgsql:ubuntu-5.4.9
Pulling zabbix-agent (zabbix/zabbix-agent:latest)...
latest: Pulling from zabbix/zabbix-agent
f56be85fc22e: Pull complete
c6eaf2aff1f1: Pull complete
f37308748cfd: Pull complete
67cb94e91f1c: Pull complete
a4410c2cadff: Pull complete
82153db6935b: Pull complete
4f4fb700ef54: Pull complete
4e17647aec41: Pull complete
Digest: sha256:8fc537a4ced6f083a5ba898a012eba6a39fc568fd68369d28d0a6a01969428da
Status: Downloaded newer image for zabbix/zabbix-agent:latest
Pulling grafana (grafana/grafana:)...
latest: Pulling from grafana/grafana
63b65145d645: Pull complete
99683f9e378e: Pull complete
b132ad7413cf: Pull complete
b766a18a263f: Pull complete
8019055fcf77: Pull complete
9d7e75cbbe4e: Pull complete
2d09137c17e1: Pull complete
73f9505ae0ff: Pull complete
dd4009ff111a: Pull complete
Digest: sha256:1a359d92f40ef98049b1aac3e43cb4a569f5dc0e552caa883a6b6f4ae1eacded
Status: Downloaded newer image for grafana/grafana:latest
Creating zabbix-agent    ... done
Creating postgres-server ... done
Creating zabbix-server   ... done
Creating grafana         ... done
Creating zabbix-frontend ... done
$

[기본 로그인]

ID : Admin

PW : zabbix

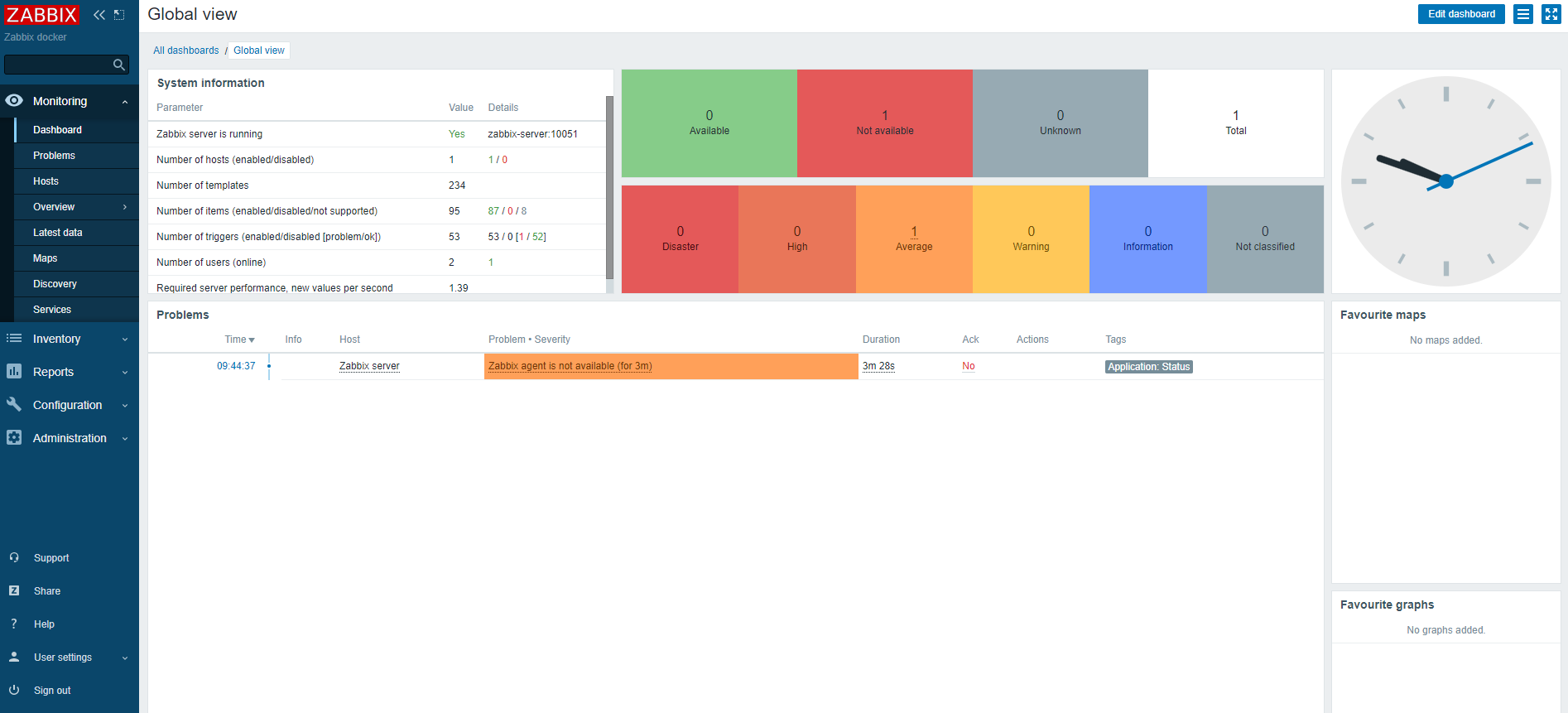

[대시보드]

[Tomcat 모니터링 설정]

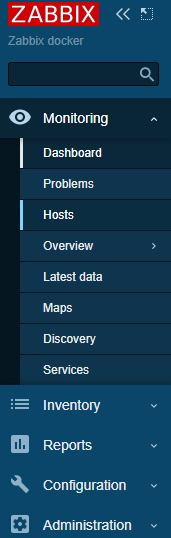

1. Hosts 클릭

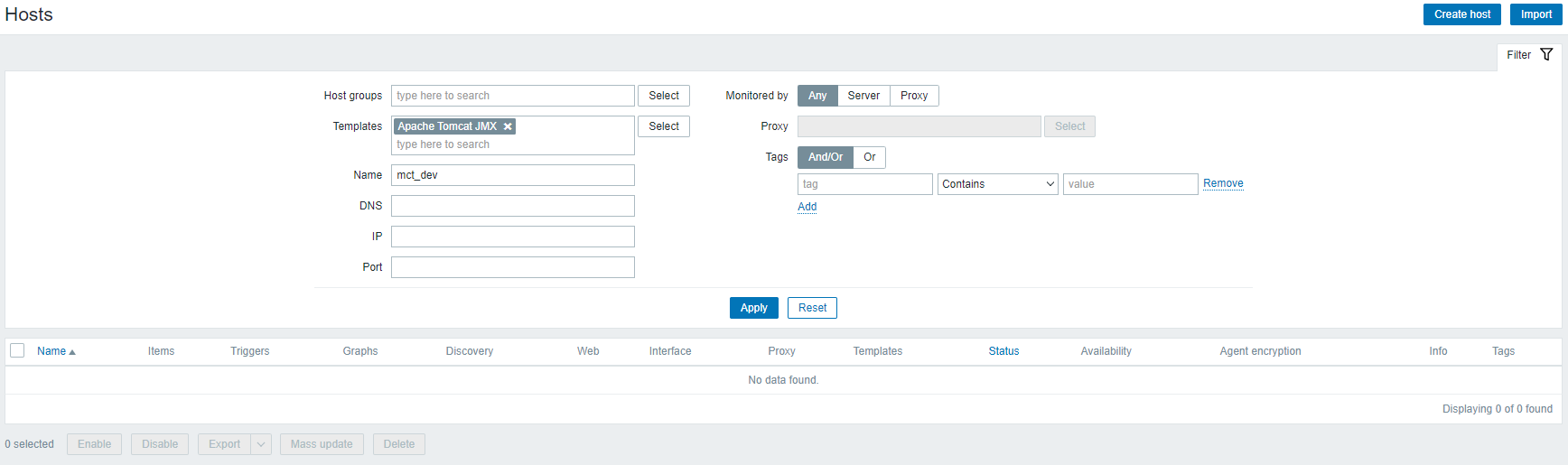

2. Templates : Configuration > Templates > Apache Tomcat JMX

3. Templates 수정 : 인증에 사용할 {$TOMCAT.USER} {$TOMCAT.PASSWORD}

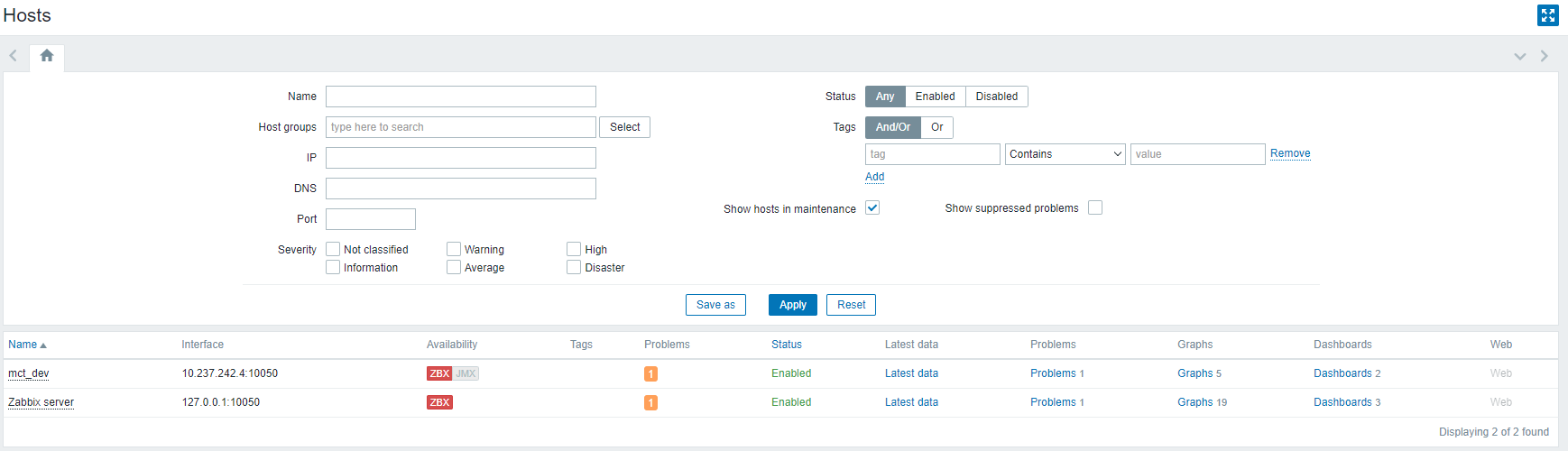

4. Hosts : Configuration > Hosts > Create host

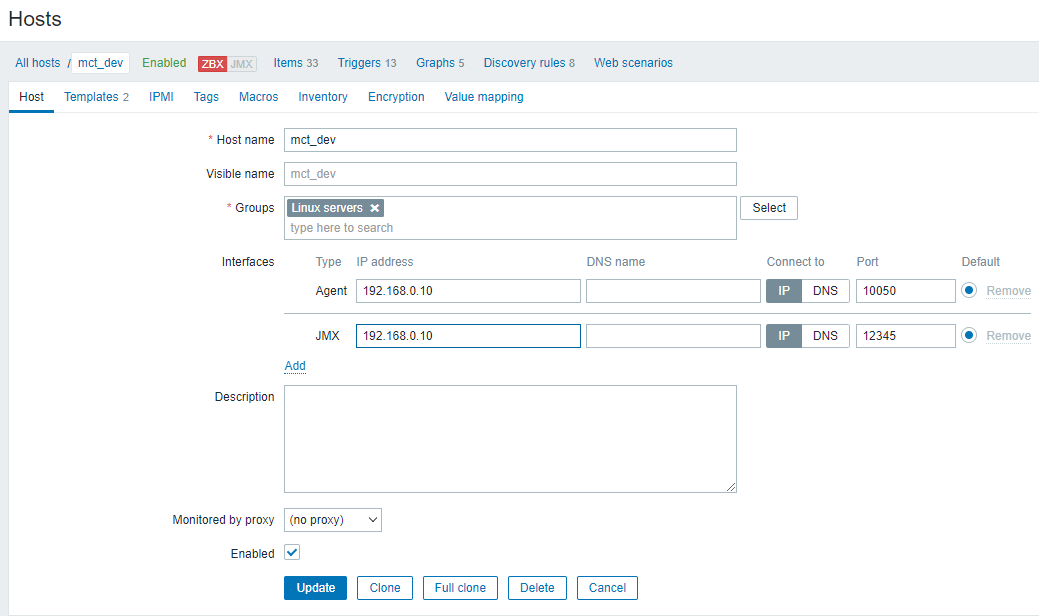

5. Hosts 추가

[Tomcat 설정]

catalina-jmx-remote.jar 다운로드

https://archive.apache.org/dist/tomcat/tomcat-8/v8.5.23/bin/extras/

Index of /dist/tomcat/tomcat-8/v8.5.23/bin/extras

archive.apache.org

tomcat/bin 폴더에 저장

[setenv.bat]

윈도우 : setenv.bat

리눅스 : setenv.sh

#인증없이

JMX_OPTS=" -Dcom.sun.management.jmxremote \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false \
-Djava.rmi.server.hostname=192.168.80.130"

CATALINA_OPTS=" ${JMX_OPTS} ${CATALINA_OPTS}"

#인증포함

JMX_OPTS=" -Dcom.sun.management.jmxremote \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false \
-Dcom.sun.management.jmxremote.password.file=$CATALINA_BASE/conf/jmxremote.password \
-Dcom.sun.management.jmxremote.access.file=$CATALINA_BASE/conf/jmxremote.access \
-Djava.rmi.server.hostname=192.168.80.130"

CATALINA_OPTS=" ${JMX_OPTS} ${CATALINA_OPTS}"

[server.xml] 아래내용 추가

<Listener className="org.apache.catalina.mbeans.JmxRemoteLifecycleListener" rmiRegistryPortPlatform="12345" rmiServerPortPlatform="12346"/>

[톰캣 Start]

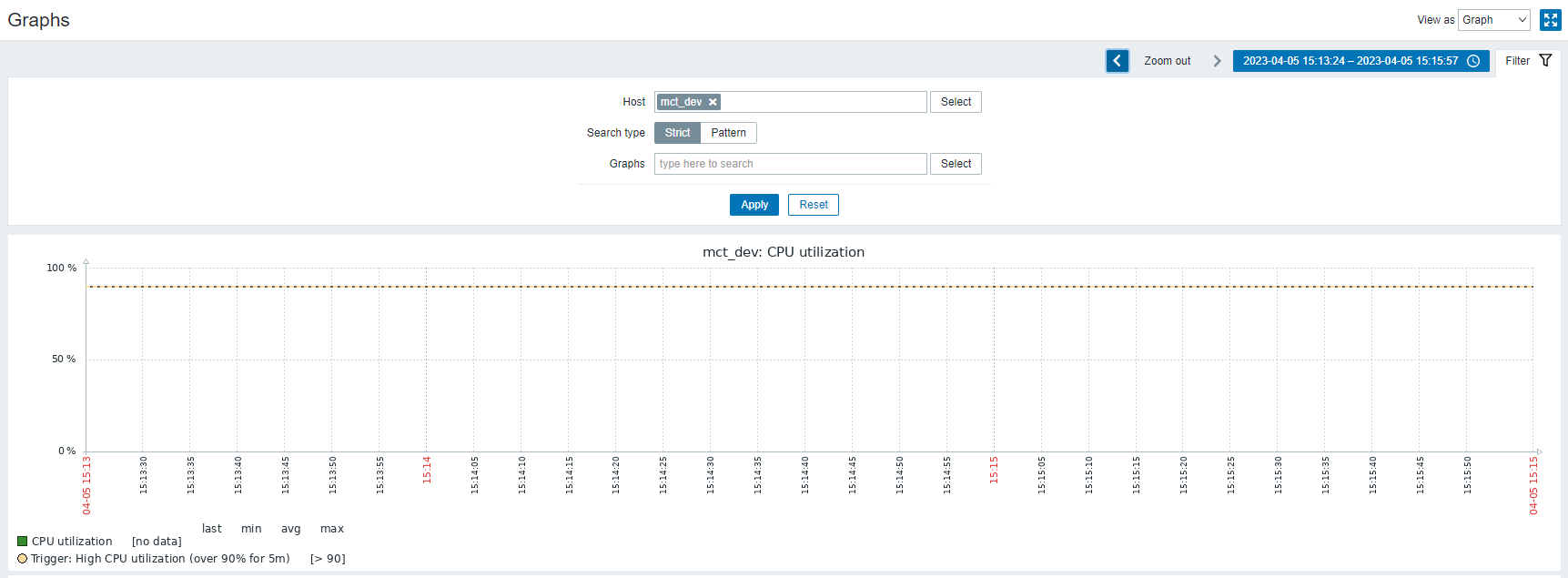

[zabbix 모니터링 확인]

여기 까지 진행했으나 agent로 들어오는 데이터는 모니터링이 되나

jmx로 설정한 부분은 연결이 되지않았다.

일단 급한대로

jConsole로 연결해서 jmx가 되는지 확인만 해보았다.

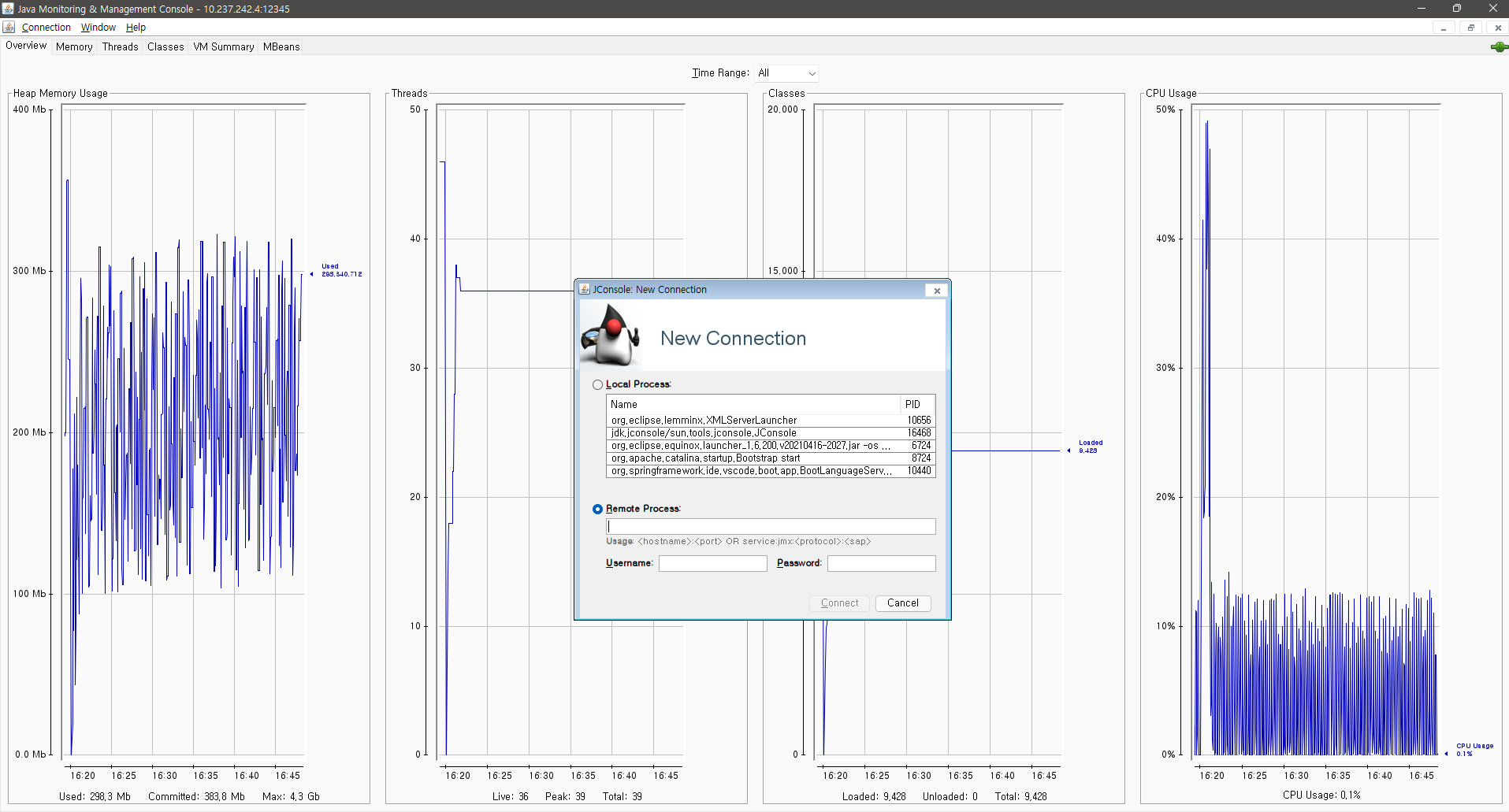

[jConsole]

오픈소스 APM인 Scouter(스카우터)를 설치해서 다시 모니터링을 시도 해봐야겠다.

728x90
